SME - SERIES IV
The Series IV is a worthy relative of ‘the best pick-up arm in the world’ with a sonic performance reflecting the care and attention to detail underlying its design and manufacture.
|Series IV Dimensions
|A – Distance from pivot to stylus
|B – Distance from pivot to turntable centre
|C – Cartridge fixing centres
|D – Offset angle
|E – Linear offset
|F – Overhang
|G – Height above mounting surface
|H – Height of record surface above mounting surface
|J – Depth below mounting surface
|K – Radial clearance for balance weight
|L – Clearance between cabinet lid and record surface assuming cartridge height at 17.0mm

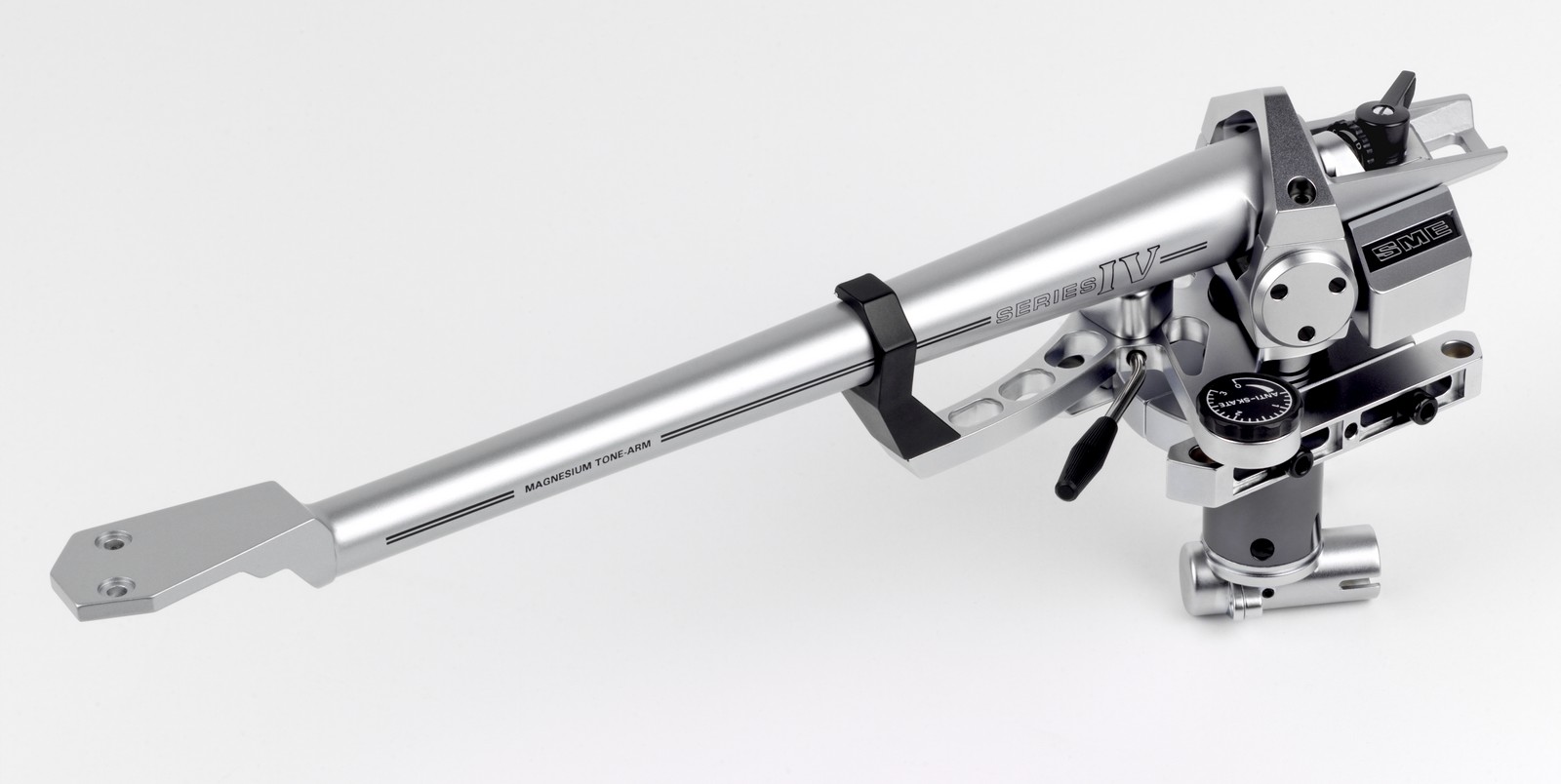

- Unique one-piece pressure die-cast tone-arm utilising the advantages of magnesium, replaces conventional fabricated construction.
- Internal constrained layer damps minute residual vibration leaving the tone-arm acoustically inert.
- Fine machined cartridge platform, enamel free to avoid interface resonance.
- Stainless steel cross shaft, ground and thread ground. Carried in massive yoke on 10mm ABEC 3 ball races. Axis at record mean level to minimise warp-wow.
- Unique assembly gives high rigidity and allows bearings to be critically adjusted before tone-arm is fitted.
- Stainless steel vertical shaft, ground and thread ground, with integral 16mm diameter flange to couple shaft and yoke.
- 23mm diameter steel pillar, heat treated, ground and honed, carries two 17mm ABEC 7 ball races, widely spaced to resist tilt.
- Swivelling damped output socket minimises vibration transmission in sub-chassis use.

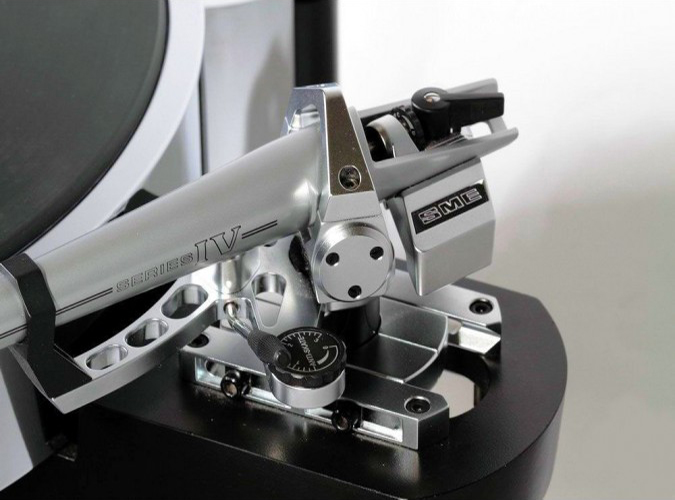

- Anti-skate control operates through tension spring and filament. Dial corresponds with VTF and has positive OFF position.
- Lowering/raising control gives smooth positive action. Height of lift can be adjusted.
- Dual-lock base provides movement control with high rigidity.
- Tungsten-alloy balance weight carried on damped two-point suspension. Extra-low inertia design assists warp riding.
- Underslung weight housing corrects centre of gravity and provides non-reflective tone-arm termination. Adjustment leadscrew journalled in twin ball races with lever clamping.
- Fine adjustment of horizontal tracking angle (HTA).
|Series IV Specifications
|Cartridge balance range
||5 – 16g
|Vertical tracking force
||0 – 3.0g(30mN)
|Maximum tracking error
||0.012(degrees per mm)
Capacitance 140.0 pF per channel
Resistance 0.145 ohms per conductor
||Capacitance 15.0 pF per channel
Resistance 0.535 ohms per conductor
|Output plug and socket
||DIN 5-pole 240°
Series IV Tonearm Manual (PDF)
